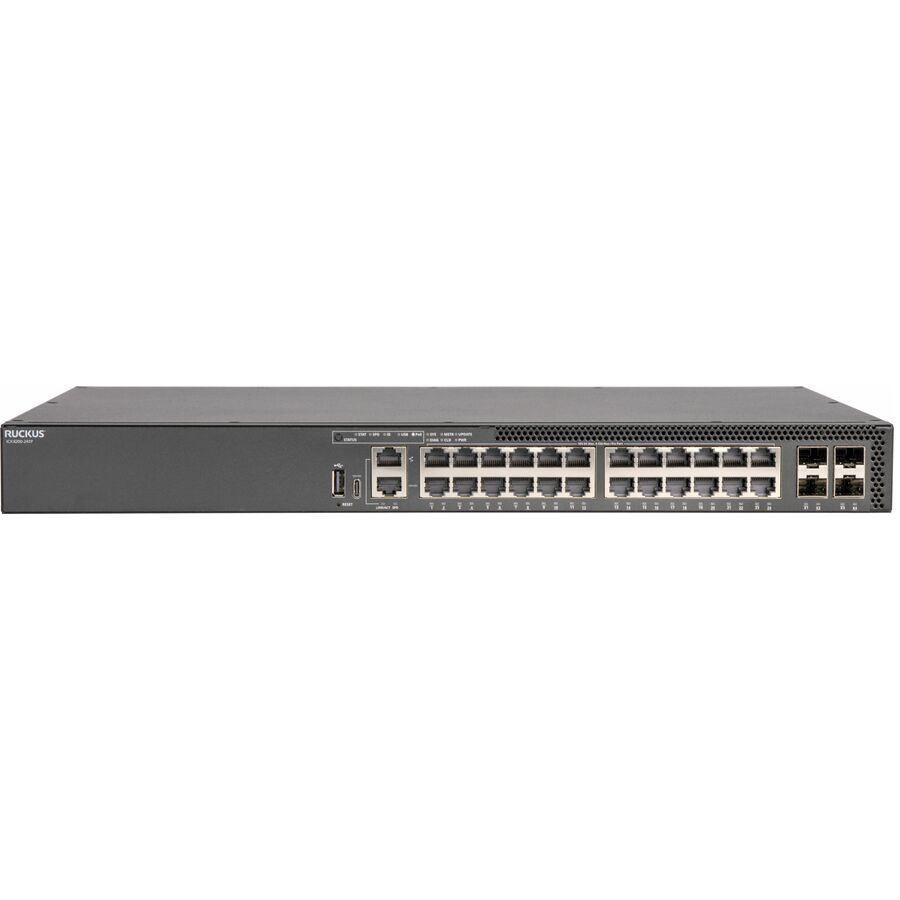

Ruckus Networks ICX 8200-24ZP 24-Port PoE++ Switch | 25 GbE, Stackable
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Stacking: Yes
- Support high-density edge devices with 24 PoE++ multigigabit ports
- Deliver faster access speeds using 100/1,000/2,500 Mbps Ethernet
- Reduce uplink congestion with 4 x 25 GbE SFP28 slots
- Power cameras, phones, and APs via PoE++ on every access port
- Scale access-layer throughput with stackable switch architecture
- Simplify multidevice deployments using integrated power delivery
- Preserve network headroom with 25 GbE uplinks to aggregation
Ideal For
- Deploying Wi-Fi 6/6E access points in enterprise closets
- Powering IP cameras and VoIP phones across a campus edge
- Aggregating multigigabit workstations in branch offices
- Building a stackable access layer for distributed buildings
Why This Product
- 1More uplink headroom than 1 GbE access switches
- 2Multigigabit ports support modern Wi-Fi and endpoint speeds
- 3PoE++ reduces the need for local power at the edge
- 4Stacking support simplifies expansion across closets
General Specifications
| BGP | No |
| VRF | Yes |
| VxLAN | Yes |
| SFlow | Yes |
| MACsec | No |
| PoE/PoE+ | Yes |
| Stacking | Yes |
| Redundant Power Option | No |
| Campus Fabric Technology | No |
| PoE++ Power Budget, Maximum | 740 W |
| Reversible Airflow Option | No |
| Layer 3 (STATIC, RIP, OSPF) | Yes |
| Switches Per Stack, Maximum | 12 |
| Switching Capacity, Maximum | 320 Gb/s |
| Multi Chassis Trunking (MCT) | No |
| IPsec VPN With Service Module | No |
| OpenFlow With Hybrid Port Mode | Yes |
| EEE (Energy Efficient Ethernet) | Yes |
| 1 GbE SFP+ Ports, Quantity, Maximum | 4 |
| 802.3bt2 (90 W PoE++ Power Per Port) | No |
| Aggregate Stack Bandwidth, Maximum | 1200 Gb/s |
| 1 GbE RJ-45 Ports, Quantity, Maximum | 24 |
| 10 GbE SFP+ Ports, Quantity, Maximum | 4 |
| 25 GbE SFP28 Ports, Quantity, Maximum | 4 |
| 1/2.5 GbE RJ-45 Ports, Quantity, Maximum | 24 |
| Hot Swap Internal Power Supplies & Fans | No |
Product Classification
| Product Type | Ethernet switch |
| Product Brand | RUCKUS® |
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
Additional Specifications
| PoE++ Port | [object Object] |
| PoE++ Ports | [object Object] |
| SFP+ Slots | [object Object] |
| Manageable | [object Object] |
| Port Count | [object Object] |
| Form Factor | Rack-mountable switch |
| Managed Type | [object Object] |
| PoE++ Standard | [object Object] |
| VLAN Support | [object Object] |
| Layer Supported | [object Object] |
| PoE++ Budget Watts | [object Object] |
| Stacking Support | [object Object] |
| Network Technology | [object Object] |
| Ethernet Technology | [object Object] |
| Compatible Rack Unit | [object Object] |
| Switching Capacity Gbps | [object Object] |
Regulatory Compliance/Certifications
| RoHS | Compliant/Exempted |
| Agency | Classification |
| UK-ROHS | Compliant/Exempted |
| CHINA-ROHS | Above maximum concentration value |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Documentation
Frequently Asked Questions
What makes the ICX 8200-24ZP different from a standard PoE switch?▾
It combines 24 PoE++ multigigabit ports with 4 x 25 GbE SFP28 uplinks, so it can power more demanding devices while keeping access traffic from bottlenecking at the uplink.
Is this switch suitable for Wi-Fi access point deployments?▾
Yes. The multigigabit ports and PoE++ support make it a strong fit for high-density access point deployments where both power and throughput matter.
Does this model support stacking?▾
Yes. Stacking support is part of the platform, which helps simplify growth and management across multiple switches.
Why choose 25 GbE uplinks at the access layer?▾
25 GbE uplinks provide more headroom to aggregation or core layers, which helps preserve performance as more powered devices and higher-speed endpoints are added.
