RUCKUS

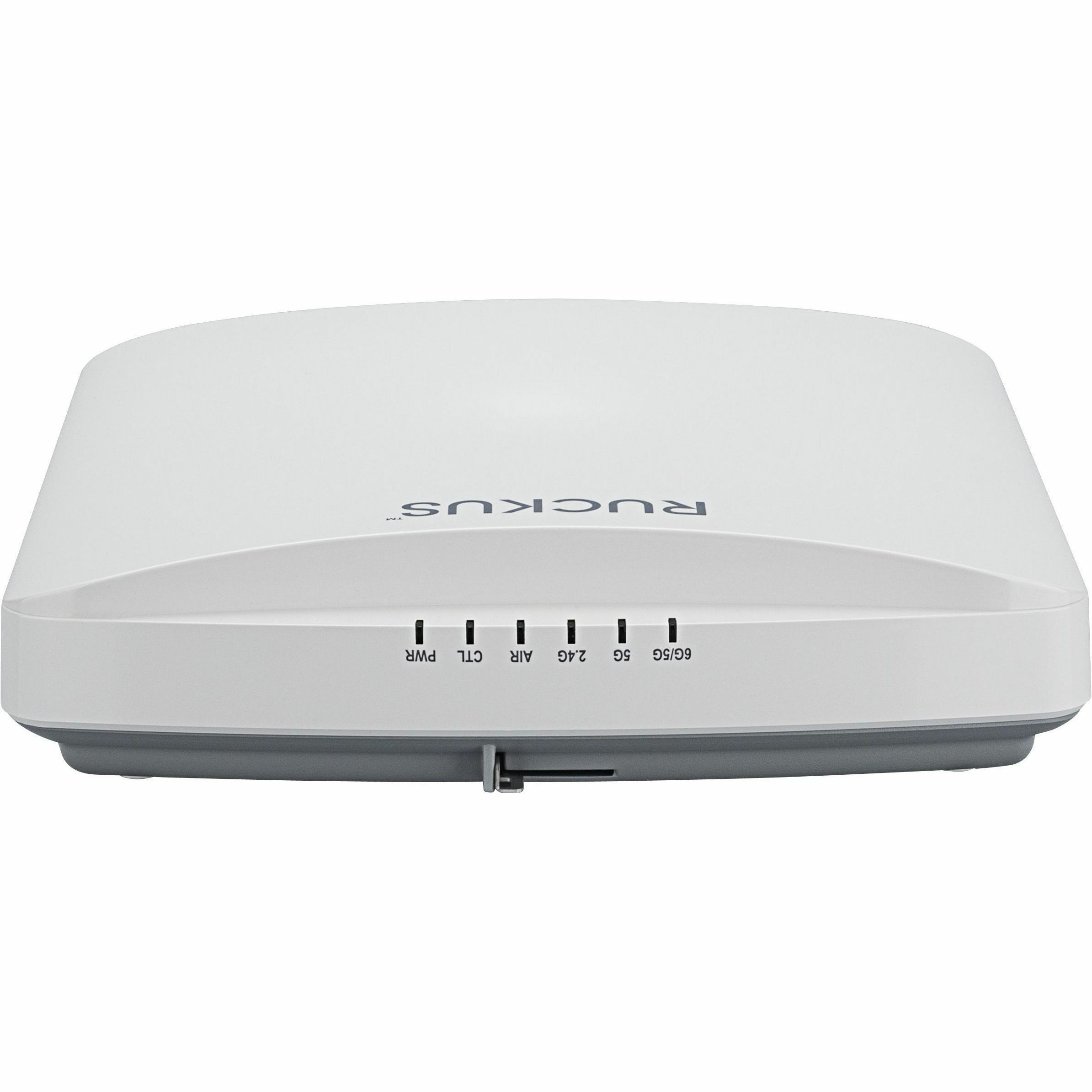

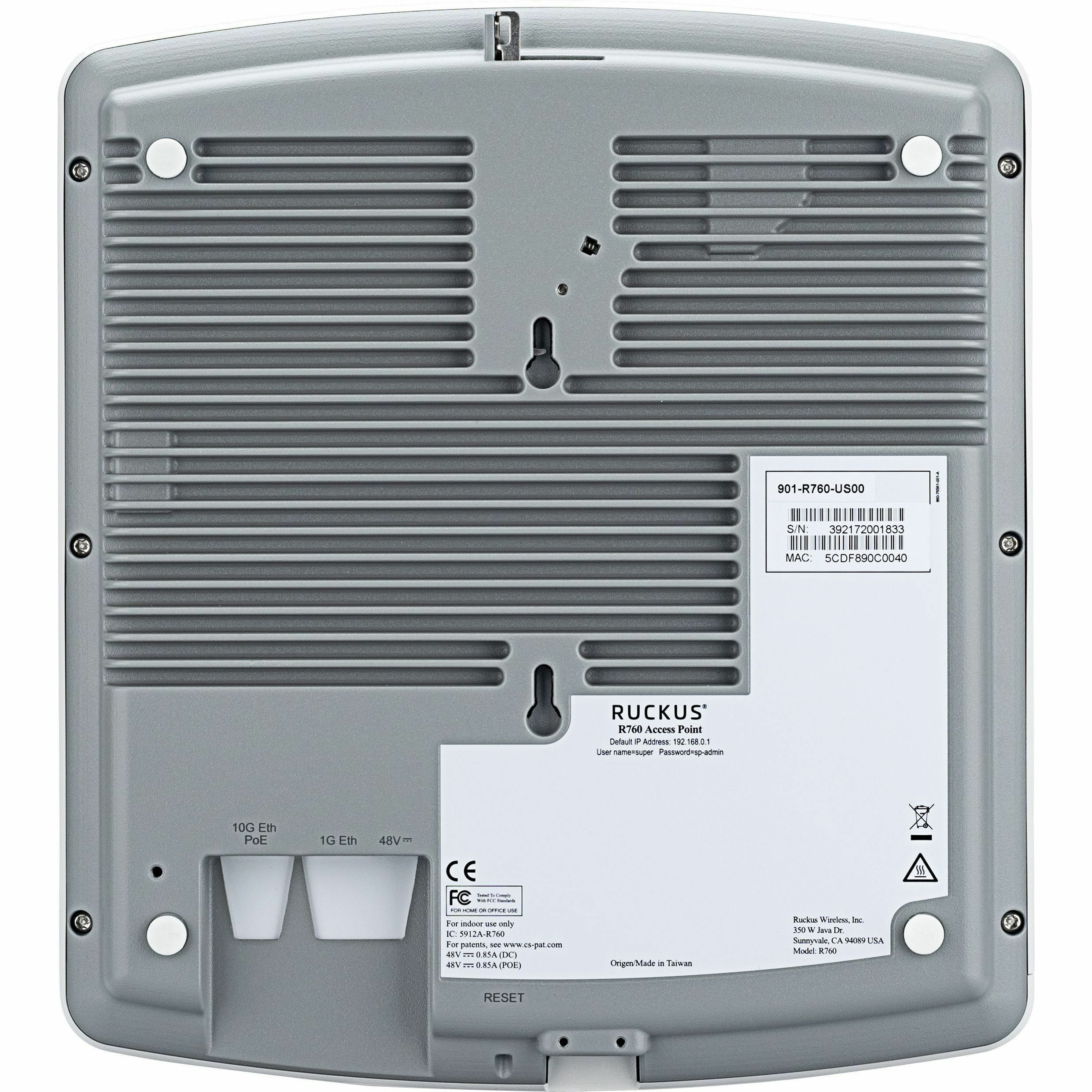

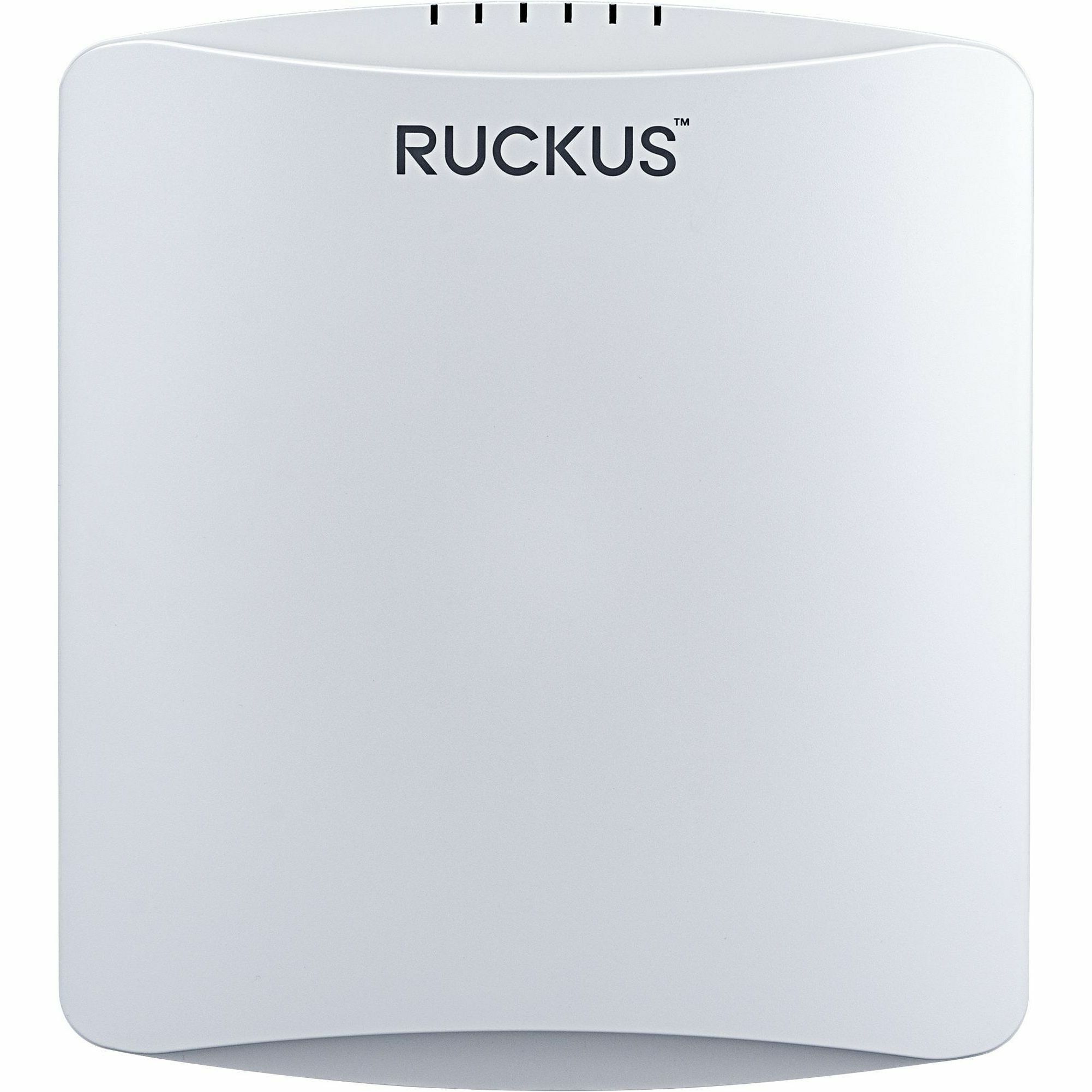

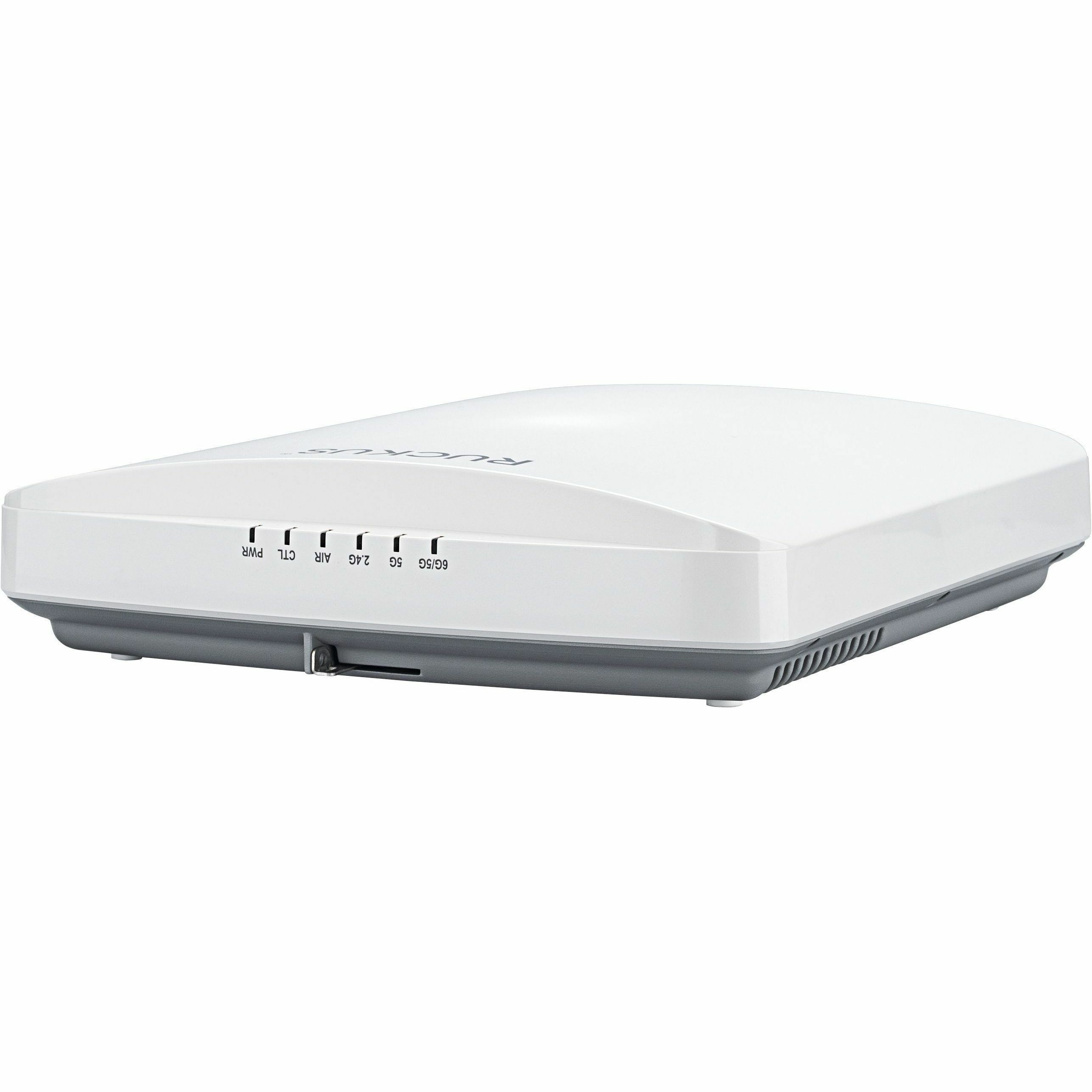

Ruckus R760 tri-band Wi-Fi 6E indoor access point with 4x4:4 design for enterprise wireless

Ruckus Networks R760 Ruckus Wi-Fi 6E AP 4x4:4 US | Tri-Band Enterprise Access Point

Ruckus Networks|

MPN: 901-R760-US00

Available on Backorder
$1,878.76$2,635.00

Ships from and sold by A5 IT

Available on backorder — ships as soon as stock arrives

Free 2-3 Day Shipping within the United StatesShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Business Pricing Available

Exclusive pricing and Net-30 terms. Sign in or create a free account.

Create Free Business Account

Key Features

  • Up to 8348 Mb/s combined PHY rate
  • Tri-Radio design
  • 4x4:4 radio chains and streams
  • Supports up to 1536 concurrent clients
  • Managed by RUCKUS Cloud™ | RUCKUS SmartZone | Standalone
  • 1 x 1 / 2.5 / 5 /10 GbE | 1 x 1 GbE Ethernet connectivity
  • Expand indoor capacity with tri-band Wi-Fi 6E support
  • Serve dense client environments using a 4x4:4 radio design
Support demanding indoor wireless environments with the Ruckus R760 tri-band Wi-Fi 6E access point. This model is built for enterprise spaces that need more than basic connectivity: it is aimed at high-density deployments where client performance, spectrum flexibility, and predictable coverage all matter. Wi-Fi 6E adds access to the 6 GHz band, helping reduce contention in crowded environments and giving network teams more room to design for capacity. The 4x4:4 radio architecture is a strong fit for offices, education spaces, conference areas, and other locations where many devices compete for airtime. For infrastructure teams, that combination supports cleaner planning and better alignment between access point capability and real-world demand. The US designation helps procurement teams match the correct regional model, which is important when standardizing hardware across sites or replacing existing units. While the source data does not provide every radio or port detail, the verified product identity and Wi-Fi 6E class already place this model above entry-level access points in both capability and deployment intent. Choose the R760 when your wireless design needs capacity, spectrum headroom, and a platform suited to serious indoor enterprise use.

Ideal For

  • High-density office wireless coverage
  • Conference room and collaboration space deployments
  • Campus or branch indoor access point standardization
  • Replacement for existing enterprise Wi-Fi 6E hardware

Why This Product

  • 1Wi-Fi 6E and tri-band design for more spectrum headroom
  • 24x4:4 architecture for denser client environments
  • 3Ruckus enterprise platform versus entry-level access points
  • 4US regional model for procurement alignment

General Specifications

USBUSB 2.0
PD-MRCYes
BeamFlexYes
SmartMeshYes
ChannelFlyYes
Venue TypeEducation | Hospitality | Office/Retail | Public Venue
IoT SupportIoT Onboard
Antenna GainUp to 4 dBi
Ethernet Ports1 x 1 / 2.5 / 5 /10 GbE | 1 x 1 GbE
Venue Sub-TypeConvention Floor | Lecture Hall | Transit Stations | Venue Common Spaces
Concurrent Users1536
Number Of RadiosTri-Radio
Wi-Fi GenerationWi-Fi 6E
Controller SupportRUCKUS Cloud™ | RUCKUS SmartZone | Standalone
Combined Max PHY Rate8348 Mb/s
Wi-Fi Bands Supported2.4 GHz | 5 GHz | 6 GHz
Rx Sensitivity At 5 GHz-96 dBm
Rx Sensitivity At 6 GHz-97 dBm
Radio Chains And Streams4x4:4
Wi-Fi Interface StandardIEEE 802.11a/b/g/n/ac/ax
Rx Sensitivity At 2.4 GHz-98 dBm
Antenna Patterns, Per Band4000+
PHY Rate At 5 GHz, Maximum2400 Mb/s
PHY Rate At 6 GHz, Maximum4800 Mb/s
PHY Rate At 2.4 GHz, Maximum1148 Mb/s

Product Classification

Product TypeIndoor access point
Product BrandRUCKUS®
Regional AvailabilityAsia | Australia/New Zealand | EMEA | Latin America | North America

Additional Specifications

Port Count[object Object]
Form Factor[object Object]
Antenna Type[object Object]
Mesh Support[object Object]
Mounting Type[object Object]
Wi-Fi Standard[object Object]
Frequency Band[object Object]
Concurrent Clients[object Object]
Controller Managed[object Object]
Max Data Rate Mbps[object Object]
Ethernet Technology[object Object]
Wireless LAN Standard[object Object]

Environmental Specifications

Operating Temperature-10 °C to +50 °C (+14 °F to +122 °F)

Purchasing this for your business?

Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.

Wholesale pricing below retail
Net-30 terms for qualified businesses
Volume discount tiers
Dedicated account representative
Saved payment methods & PO support
Priority order processing
Create Free Business Account

Frequently Asked Questions

What makes the R760 different from a standard Wi-Fi access point?▾

It supports Wi-Fi 6E and tri-band operation, which gives enterprise networks more spectrum options and better fit for dense indoor deployments.

Is the R760 suitable for high-density environments?▾

Yes. The 4x4:4 design and Wi-Fi 6E class make it a strong fit for offices, conference areas, and other busy indoor spaces.

Does the source data confirm maximum throughput?▾

No. A verified maximum data rate was not provided in the source data, so it is omitted here.

Why is the US designation important?▾

It helps procurement teams match the correct regional hardware variant for deployment and replacement planning.
