Ethernet switch

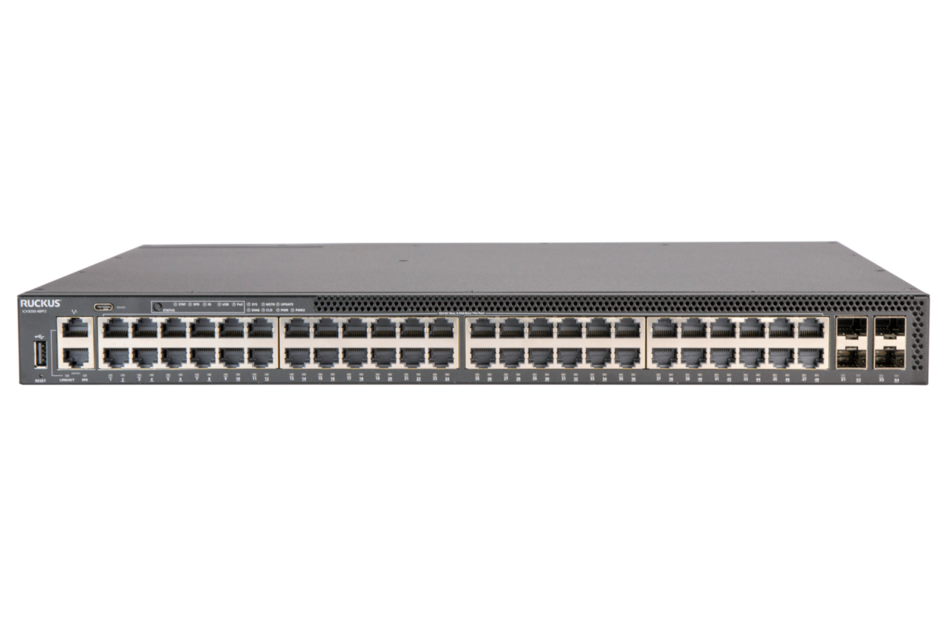

RUCKUS ICX 8200-48PF2
RUCKUS ICX 8200-48PF2
Order online
- ICX8200-48PF2-E2SWITCH - ICX8200 - 1U - WIRED - 25GBPS - NETWORKING / PORTS QTY: 53 - GIGABIT ET
- ICX8200-48PF2-ERUCKUS ICX 8200 SWITCH, 48 10/100/1000 MBPS POE+ PORTS, 4 25 GBE SFP28 STACKING/
- ICX8200-48PF2-E-R5RUCKUS ICX 8200 SWITCH, 48 10/100/1000 MBPS POE+ PORTS, 4 25 GBE SFP28 STACKING/
- ICX8200-48PF2-E-VRUCKUS ICX 8200 PRO AV 1RU SWITCH, 48 10/100/1000 MBPS POE+ PORTS, 4 25 GBE SFP2
Ships from and sold by A5 IT.
Specifications
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|---|---|
| Product Type | Ethernet switch |
| Product Brand | RUCKUS® |
General Specifications
| Switching Capacity, maximum | 296 Gb/s |
|---|---|
| 1 GbE RJ45 Ports, quantity, maximum | 48 |
| 1 GbE SFP Ports, quantity, maximum | 4 |
| 10 GbE SFP+ Ports, quantity, maximum | 4 |
| 25 GbE SFP28 Ports, quantity, maximum | 4 |
| PoE Power Budget, maximum | 1440 W |
| Switches per Stack, maximum | 12 |
| Aggregate Stack Bandwidth, maximum | 1200 Gb/s |
| PoE/PoE+ | Yes |
| Stacking | Yes |
| sFlow | Yes |
| Layer 3 (STATIC, RIP, OSPF) | Yes |
| OpenFlow with Hybrid Port Mode | Yes |
| Campus Fabric Technology | No |
| Redundant Power Option | Yes |
| Hot Swap Internal Power Supplies & Fans | Yes |
| 802.3bt2 (90 W PoE Power per Port) | Yes |
| VRF | Yes |
| EEE (Energy Efficient Ethernet) | Yes |
| IPsec VPN, with service module | No |
| MACsec | No |
| BGP | No |
| Reversible Airflow Option | No |
| VxLAN | Yes |
| Multi Chassis Trunking (MCT) | No |
Regulatory Compliance/Certifications
| Agency | Classification |
|---|---|
| CHINA-ROHS | Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
