Ethernet switch

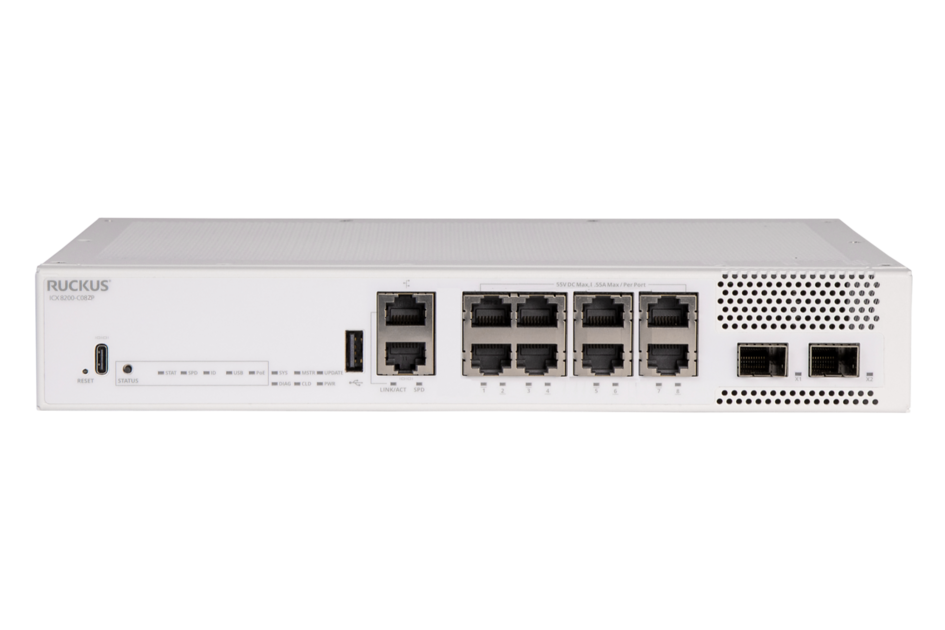

RUCKUS ICX 8200-C08ZP
RUCKUS ICX 8200-C08ZP
Specifications
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|---|---|
| Product Type | Ethernet switch |
| Product Brand | RUCKUS® |
General Specifications
| Switching Capacity, maximum | 200 Gb/s |
|---|---|
| 1 GbE RJ45 Ports, quantity, maximum | 8 |
| 1 GbE SFP Ports, quantity, maximum | 2 |
| 10 GbE SFP+ Ports, quantity, maximum | 2 |
| 1/2.5 GbE RJ45 Ports, quantity, maximum | 4 |
| 1/2.5/5/10 GbE RJ45 Ports, quantity, maximum | 4 |
| 10 GbE RJ45 Ports, quantity, maximum | 4 |
| PoE Power Budget, maximum | 240 W |
| Switches per Stack, maximum | 12 |
| Aggregate Stack Bandwidth, maximum | 600 Gb/s |
| PoE/PoE+ | Yes |
| Stacking | Yes |
| sFlow | Yes |
| Layer 3 (STATIC, RIP, OSPF) | Yes |
| OpenFlow with Hybrid Port Mode | Yes |
| Campus Fabric Technology | No |
| Redundant Power Option | No |
| Hot Swap Internal Power Supplies & Fans | No |
| 802.3bt2 (90 W PoE Power per Port) | Yes |
| VRF | Yes |
| EEE (Energy Efficient Ethernet) | Yes |
| IPsec VPN, with service module | No |
| MACsec | No |
| BGP | No |
| Reversible Airflow Option | No |
| VxLAN | Yes |
| Multi Chassis Trunking (MCT) | No |
Regulatory Compliance/Certifications
| Agency | Classification |
|---|---|
| CHINA-ROHS | Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
