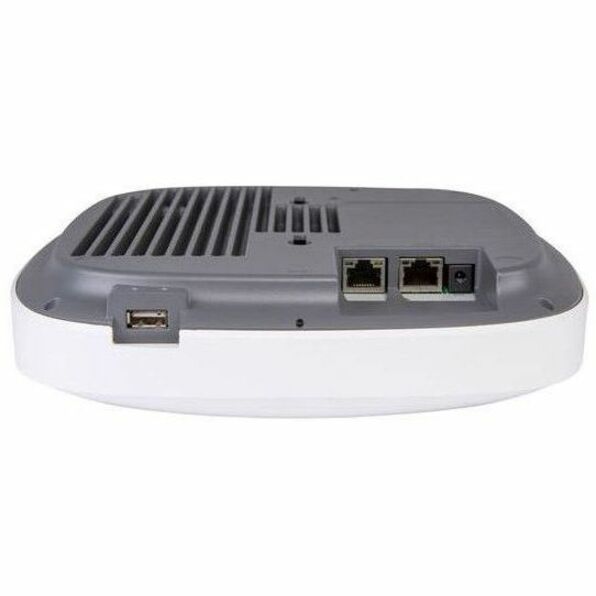

Ruckus Networks R670 Wi-Fi 7 Tri-Band | Indoor, Enterprise, Access Point
$1,287.37$2,195.00
Ships from and sold by A5 IT
Free 2-3 Day Shipping within the United StatesArrives by Tuesday, Oct 27
Order within 45m to get it by Tuesday, Oct 27
New, with full manufacturer warranty
Business Pricing Available
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Up to 9340 Mb/s combined PHY rate
- Tri-Radio design
- 2x2:2 radio chains and streams
- Supports up to 768 concurrent clients
- Managed by RUCKUS One™ | RUCKUS SmartZone | RUCKUS Unleashed™
- 1 x 1 / 2.5 / 5 GbE | 1 x 1 GbE Ethernet connectivity
- Increase indoor wireless capacity with Wi-Fi 7 tri-band operation
- Balance mixed-device traffic using 2x2 2.4 GHz radio design
Deliver more capable indoor wireless where client density and application demand keep rising. The RUCKUS R670 combines Wi-Fi 7 with tri-band operation to support modern enterprise connectivity needs across offices, classrooms, hospitality spaces, and other managed environments. Its 2x2 radio design on 2.4 GHz helps balance coverage and capacity in mixed-device deployments.
This access point is a strong fit for organizations that want to move beyond legacy wireless without overbuilding the network. Wi-Fi 7 brings a more current foundation for performance-sensitive indoor deployments, while the tri-band architecture helps distribute traffic more effectively across available spectrum. That matters when users expect consistent access for collaboration, voice, cloud applications, and roaming.
Choose the R670 when wireless infrastructure needs to support more devices, more traffic, and more predictable user experience in a compact indoor footprint. It is designed for teams that value RF efficiency and long-term network planning over commodity access point specs.
Ideal For
- Enterprise office floors with growing device counts
- Classroom networks needing stronger indoor capacity
- Hospitality deployments with mixed client traffic
- Wireless refresh projects moving to Wi-Fi 7
Why This Product
- 1Wi-Fi 7 for current-generation wireless planning
- 2Tri-band operation for better traffic distribution
- 32x2 2.4 GHz radio design for mixed-device environments
- 4Indoor enterprise form factor for managed deployments
General Specifications
| USB | USB 2.0 |
| PD-MRC | Yes |
| BeamFlex | Yes |
| SmartMesh | Yes |
| ChannelFly | Yes |
| Venue Type | Education | Hospitality | Office/Retail | Public Venue |
| IoT Support | IoT Onboard |
| Antenna Gain | Up to 4 dBi |
| Ethernet Ports | 1 x 1 / 2.5 / 5 GbE | 1 x 1 GbE |
| Venue Sub-Type | Convention Floor | Lecture Hall | Transit Stations | Venue Common Spaces |
| Concurrent Users | 768 |
| Number Of Radios | Tri-Radio |
| Wi-Fi Generation | Wi-Fi 7 |
| Controller Support | RUCKUS One™ | RUCKUS SmartZone | RUCKUS Unleashed™ |
| Combined Max PHY Rate | 9340 Mb/s |
| Wi-Fi Bands Supported | 2.4 GHz | 5 GHz | 6 GHz |
| Rx Sensitivity At 5 GHz | -100 dBm |
| Rx Sensitivity At 6 GHz | -96 dBm |
| Radio Chains And Streams | 2x2:2 |
| Wi-Fi Interface Standard | IEEE 802.11a/b/g/n/ac/ax/be |
| Rx Sensitivity At 2.4 GHz | -97 dBm |
| Antenna Patterns, Per Band | 4000+ |
| PHY Rate At 5 GHz, Maximum | 5765 Mb/s |
| PHY Rate At 6 GHz, Maximum | 5765 Mb/s |
| PHY Rate At 2.4 GHz, Maximum | 689 Mb/s |
Product Classification
| Product Type | Indoor access point |
| Product Brand | RUCKUS® |
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
Additional Specifications
| Form Factor | [object Object] |
| Antenna Type | [object Object] |
| Mesh Support | [object Object] |
| Wi-Fi Standard | [object Object] |
| Frequency Band | [object Object] |
| Concurrent Clients | [object Object] |
| Controller Managed | [object Object] |
| Max Data Rate Mbps | [object Object] |
| Ethernet Technology | [object Object] |
| Wireless LAN Standard | [object Object] |
Environmental Specifications
| Operating Temperature | 0 °C to +50 °C (+32 °F to +122 °F) |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Wholesale pricing below retail
Net-30 terms for qualified businesses
Volume discount tiers
Dedicated account representative
Saved payment methods & PO support
Priority order processing
Documentation
Frequently Asked Questions
What is the main advantage of the R670?▾
It brings Wi-Fi 7 and tri-band operation to indoor enterprise deployments that need more capacity and better spectrum distribution.
Is the R670 suitable for dense office environments?▾
Yes. Its tri-band design and Wi-Fi 7 foundation are well suited to indoor spaces with many connected devices.
Does this model support 2.4 GHz operation?▾
Yes. The product description specifies a 2x2 radio design on 2.4 GHz.
Why choose Wi-Fi 7 for an access point refresh?▾
Wi-Fi 7 provides a more current wireless standard for organizations planning around higher device counts and more demanding applications.
